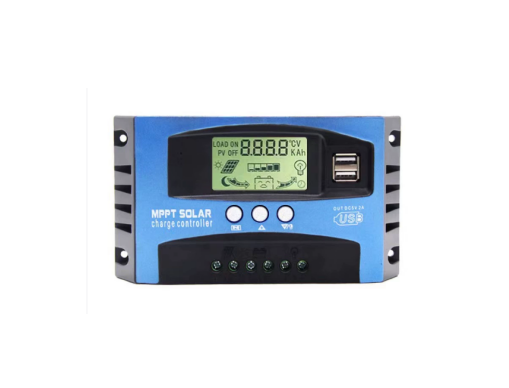

Solar power controller
Solar power controller
Technical indicators (universal):
1. System voltage: 12V/24V adaptive. 12V battery compatible with 15-23V photovoltaic panels, 24V battery compatible with 30-46V photovoltaic panels
2. Rated charging current: 10A | 20A | 30A | 40A/50A/60A/80A | 100A
3. Rated discharge current: 10A | 20A | 20A | 30A | 30A
4. Maximum photovoltaic voltage: 23V for 12V batteries and 46V for 24V batteries.
5. Charging cut-off voltage value: B1: Lead acid battery (14.2V) B2: Ternary lithium battery (12.2V) B3: Lithium iron phosphate battery (14.6V)
6. Floating charging voltage: 14.2 V (default value, adjustable)
7. Discharge cut-off voltage: 10.7 V (default value, adjustable)
8. Discharge recovery voltage: 12.6 V (default value, adjustable)
9. Standby current:<10mA 10. Operating temperature: -35-60
11. USB output: 5V/2A
Solar power controller
Technical indicators (universal):
1. System voltage: 12V/24V adaptive. 12V battery compatible with 15-23V photovoltaic panels, 24V battery compatible with 30-46V photovoltaic panels
2. Rated charging current: 10A | 20A | 30A | 40A/50A/60A/80A | 100A
3. Rated discharge current: 10A | 20A | 20A | 30A | 30A
4. Maximum photovoltaic voltage: 23V for 12V batteries and 46V for 24V batteries.
5. Charging cut-off voltage value: B1: Lead acid battery (14.2V) B2: Ternary lithium battery (12.2V) B3: Lithium iron phosphate battery (14.6V)
6. Floating charging voltage: 14.2 V (default value, adjustable)
7. Discharge cut-off voltage: 10.7 V (default value, adjustable)
8. Discharge recovery voltage: 12.6 V (default value, adjustable)
9. Standby current:<10mA 10. Operating temperature: -35-60
11. USB output: 5V/2A
